Building responsive UIs

In a nutshell:

1. Use ${device.width} to modify properties according to device width
2. Use the GridView widget's built-in responsive breakpoints
3. Use the Flow widget to wrap content
4. Use the Flex widget to toggle between horizontal and vertical layouts
5. Avoid setting explicit width and height, specially for container widgets (Rows, Columns, GridView, etc.)

1. Modify properties based on device width

You can get the device width and height and modify properties conditionally. In the below example, the column's gap is set to 16 when device width is more than 480, otherwise it is set to 8.

Column:
    styles:
        gap: "${ device.width > 480 ? 16 : 8 }"

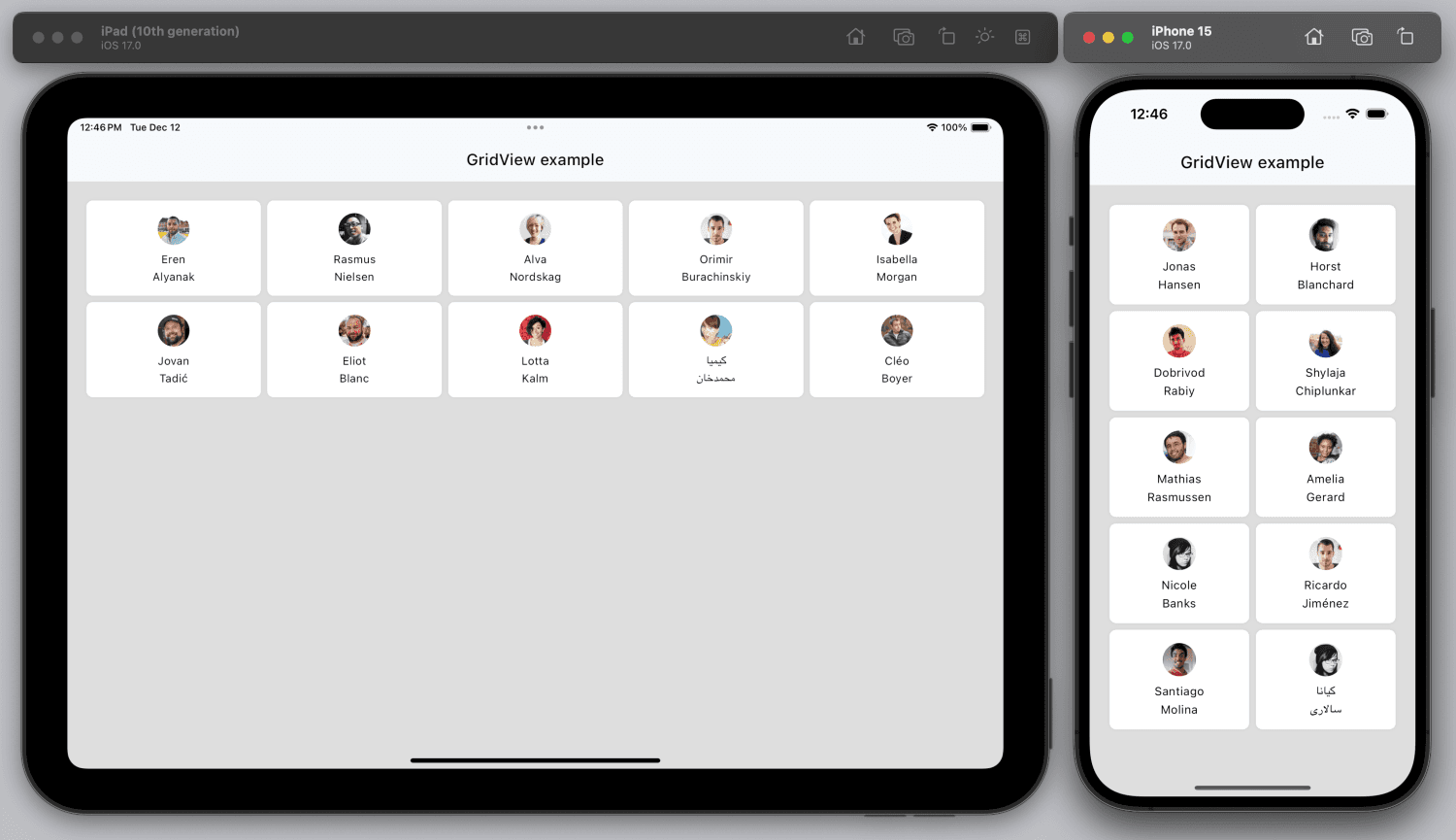

2. GridView's built-in breakpoints

GridView widget includes built-in responsive breakpoints.

You can pass 1, 3, or 5 values to horizontalTileCount property to make the grid responsive based on predefined set of breakpoints.

GridView's horizontalTileCount can be:

• 1 number - number of tiles for all breakpoints
• 3 numbers
  • first number corresponds to xSmall and Small,
  • second number corresponds to Medium
  • last numner corresponds to xLarge and Large
• 5 numbers, corresponding to each breakpoint

When not specified, the horizontal tile count is automatic based on resolution.

In this example, depending on the available width, there will be 3 to 5 items per row.

GridView:
  styles:
    horizontalTileCount: 3 4 5

# Full example here:
# https://studio.ensembleui.com/app/nWsD5baeykm3W772kkSw/screen/WS6fad3K96prUBXM4Hde

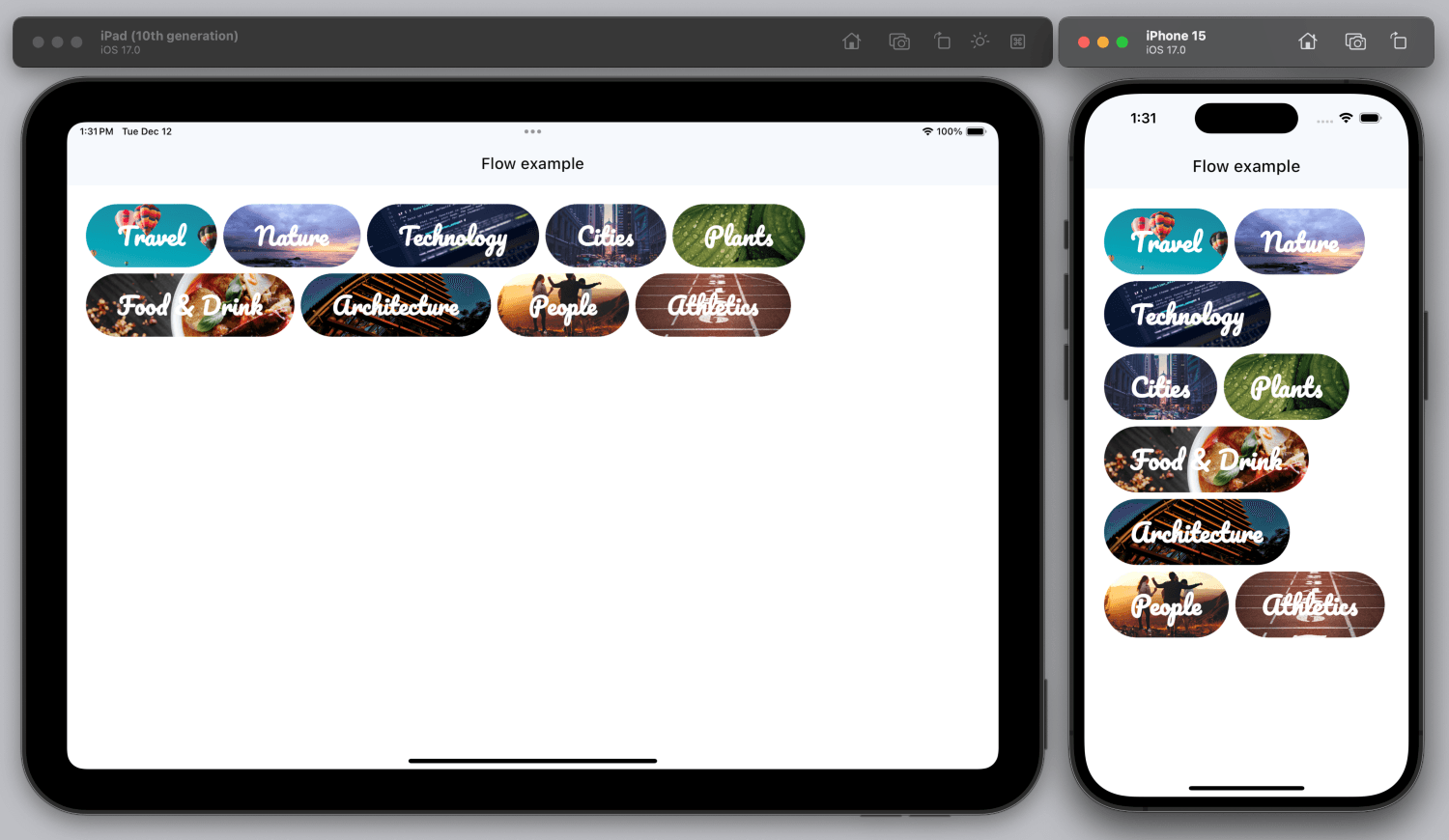

3. Wrap content with Flow widget

Flow widget displays its children horizontally and wraps the children when it runs out of horizontal space.

Flow:
  styles:
    gap: 16
    lineGap: 16
  children:
    - MyItem

# Full example here:
# https://studio.ensembleui.com/app/nWsD5baeykm3W772kkSw/screen/YbsqXNaXL5kpxKavlGKQ

4. Toggle between horizontal and vertical layouts with Flex widget

Flex widget dynamically switches between a Row or a Column based on the direction property.

Flex:
  styles:
    direction: '${device.width > 500 ? "horizontal" : "vertical"}'

# Full example here:
# https://studio.ensembleui.com/app/nWsD5baeykm3W772kkSw/screen/jLdWFkmrfgkhuaON568d
